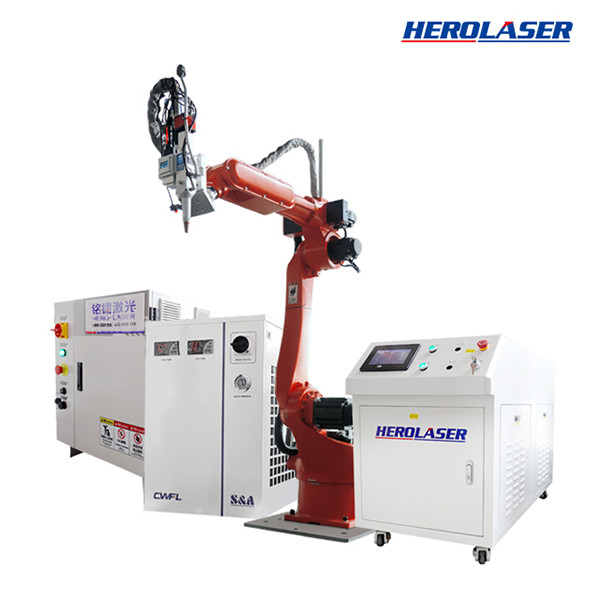

Water Cooling AC380V Hero Laser Robot Laser Welding Machine

Name: Water Cooling AC380V Hero Laser Robot Laser Welding Machine
Brand: Herolaser
Price: 1 USD

Quality Water Cooling AC380V Hero Laser Robot Laser Welding Machine for sale

Brand Name : Herolaser

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30-45 days

Packaging Details : Wooden case

Power(Laser Source) : 1000W，1500W，2000W

Wavelength : 1080nm

Working Mode : Continuous / Modulation

Material Thickness : SS、Aluminum Alloy≤3mm

Control System : ML Laser Control System

Cooling : Water Cooling

Power(Machine) : 5KW ~10KW

Power Demand : 380V±10%，50Hz/60Hz AC

Contact Now

Parameter

Technical Parameters
Power(Laser Source)	1000W,1500W,2000W
Wavelength	1080nm
Working Mode	Continuous / Modulation
Material Thickness	SS,Aluminum Alloy≤3mm
Control System	ML Laser Control System
Aiming & Positioning	CCD,Red Light Indicator
Cooling	Water Cooling
Power(Machine)	5KW ~10KW
Power Demand	380V±10%,50Hz/60Hz AC

Equipment Configuration List
Name	Specification	Quantity	Remark
Six-axis Manipulator	Repeat Positioning Accuracy 0.05mm	1 Set	QX1600 (With base)
Fiber Laser Source		1 Set
WOBBLE Welding Head	Made by Herolaser	1 Set	Domestic
Host Cabinet	Herolaser Customized	1 Set	Domestic
CCD Observation System	Dedicated for Welding	1 Set	Domestic
Wire Feeding Device	Herolaser Customized	1 Set

Water Cooling AC380V Hero Laser Robot Laser Welding Machine

Products Description

Herolaser robot laser welding

Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc. The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.

The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.

The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.
The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.
If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser.
After the machine is turned on, the water circulation and the radiator form heat exchange with the outside world, which quickly removes the heat generated when the laser is working, ensuring that the laser is working properly.
 The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.

Wobble Welding Head

Wider applications, large workpieces, workpieces with wider welding seams can be welded
Advantages of wobble welding machine technology
1. High quality spot welding 2. The allowable range of weld width is expanded 3. Beautiful weld
4.  Can weld a variety of metals  5. Low laser power  requirement 6. Process stability


Angle welding of various complex products

It can carry out flexible transmission and non-contact welding for difficult-to-access precision parts, which has great flexibility Adapt to the welding seam, tailor welding, butt welding and stitch welding of various complex products

Sample Show

Applicable Industry

Car Manufacturer

Shipbuilding Industry

Metal Processing

Fitness Equipment

Aerospace

Construction Machinery

Installation Instructions

ABOUT HEROLASER

Shenzhen Herolaser Equipment Co., Ltd was established in 2004, is a national high-tech enterprise in China, engaged in the
 research and development, production and marketing of laser equipment group of companies, has formed a complete series of
 industrial laser equipment supply platform.

 With a team of professional technical personnel,rich management experience, clear development direction to ensure our rapid growth
 in the rapid development of the laser industry,we have established branches in Jiangsu, Zhejiang,Shandong, Chongqing and other
 regions in China, and we have exported to 60 countries and have overseas agents in 10 countries. Our main products is Laser
 Cleaning Machine / Laser Marking Machine / Laser Welding Machine / Laser Cutting Machine.

 Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
 equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

Certification

Packaging & Shipment

Our Services

---Pre-Sales Service

① Free pre-sales 7*24 hours rapid response services / cousulting ② Free sample testing / inspection ③ Free design of fixtures as customers / distributor required ④ Strict quality control for our products ⑤ Quick delivery time

---After-sales Services
① 2 year guarantee for laser source(people damaged are charged) ② Full technical support / by e-mail, call and video ③ Spare parts supply. ④ Free online training installation and operation ⑤ 12 hours quick feedback & after-sales services ⑥ ODM/OEM service
