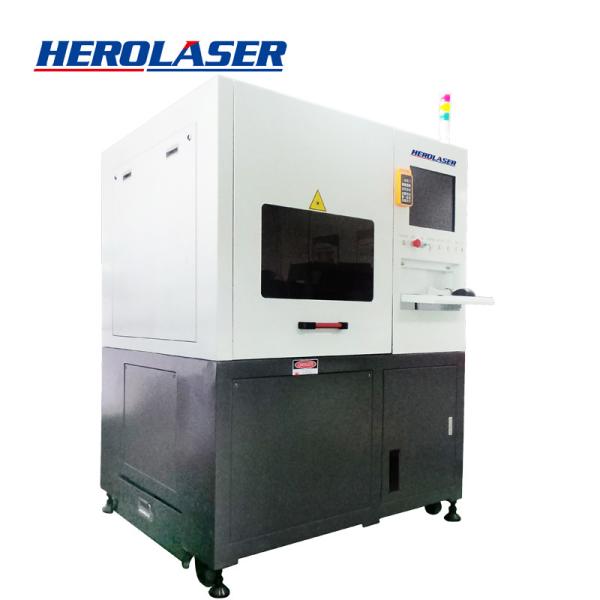

300 500 800 1000W IPG Fiber Laser Cutting Machine

Name: 300 500 800 1000W IPG Fiber Laser Cutting Machine
Brand: Herolaser
Price: 1 USD

Quality 300 500 800 1000W IPG Fiber Laser Cutting Machine for sale

Brand Name : Herolaser

Model Number : ML-C4-QF-OC-IW500

Certification : CE,FDA

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 600 Sets Per Month

Delivery Time : 12 days

Packaging Details : Wooden case package: 1700 ×1250 ×1750 mm/1500 KG

Application : Laser Cutting

Laser wevelength : 1070nm

Electricity demand : 220V /50Hz/32A

Output power : 500W

Effective cutting range : 600mm*350mm

Cutting thickness : ≤2mm

Cooling Mode : WATER COOLING

Cutting speed : ≤10000mm/min

Contact Now

300w 500w 1000w 800w fiber laser cutting machine with IPG laser source

Product Introduction

This model adopts high-precision linear motor working platform, high precision, fast speed, optional high-precision CCD automatic positioning and automatic correction. The entire processing process is automatically controlled by computer software, and the software interface provides real-time feedback to understand the processing status in time, with non-contact processing schemes, no mechanical stress and deformation, simple operation and high cutting accuracy.

Advantages and Features

1	Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
2	High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
3	Fiber life can reach 100,000 hours

Technical Specs

S.N	Item	Specifications
1	Model type	Precious metal precision cutting machine
2	Laser wavelength	1070nm
3	Maximum output power	500W
4	Effective cutting range	600*350mm
5	Cutting thickness	≤2mm
6	Cutting length range	Within 3000mm
7	Cutting speed	≤10000mm/min
8	Positioning accuracy of worktable	≤0.05mm
9	Repeated positioning accuracy of worktable	≤±0.01mm
10	Electricity demand	AC 220V ±5% /50Hz
11	Whole machine power consumption	≤3.5KW
12	Equipment size	150016002000mm

Applications:

It is suitable for a variety of laser processing such as cutting and perforating a variety of metal sheets, such as cutting of hardware, consumer electronic components, various instruments, and sheet metal processing.

Cutting samples for reference

300 500 800 1000W IPG Fiber Laser Cutting Machine

FAQ

1. How is the payment?

30% deposit before production and the balance 70% before shipment

2. How is the delivery and shipment?

Ship in 7 days after 100% payment;
Plywood box packaging

3. How will you guarantee aftersales services?

We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
Engineers available to service machinery overseas
Free technical training in our factory
Free sample can be sent to you
Professional technical team 24 hours online

4. How about your presales service?

Speeding offer within 8 hours quick response and free consulting.
Free sample cutting or testing is available
Progressing solution design to all clients, including distributors and end users.
